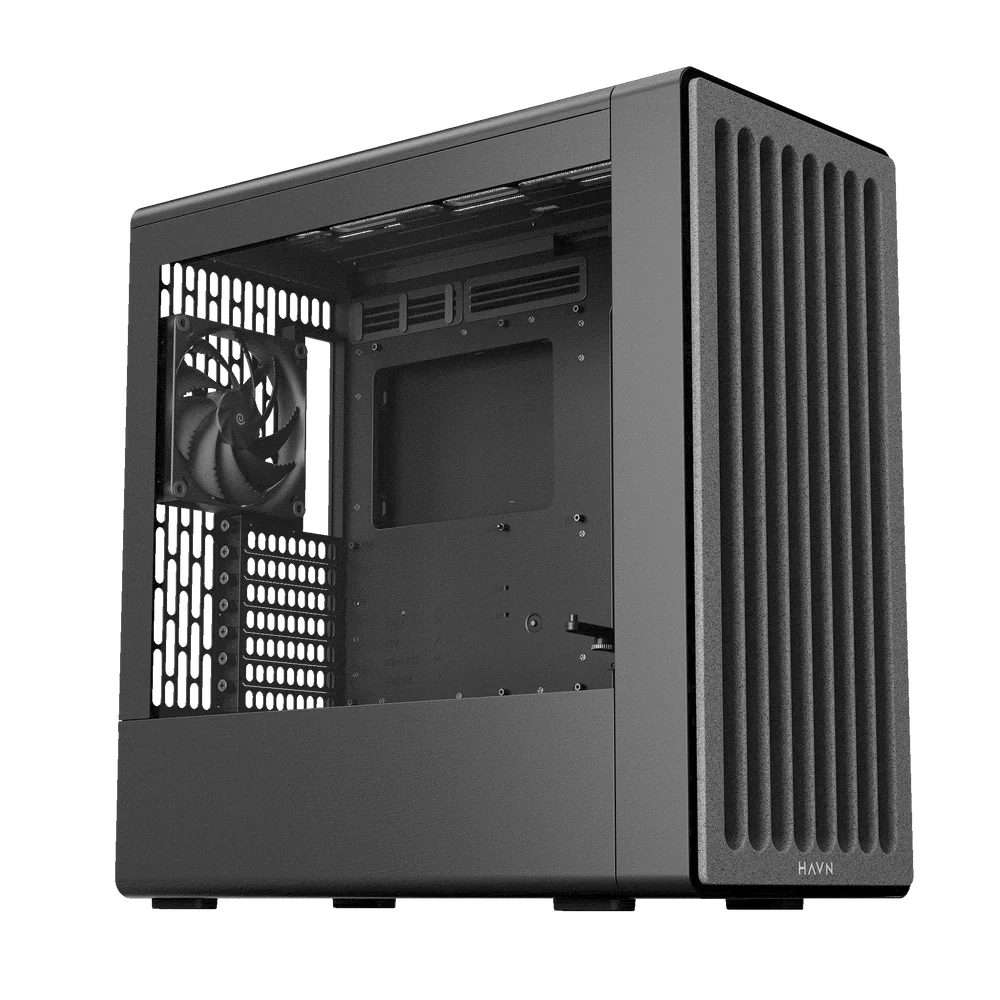

HAVN BF 360 Flow Chassis - Black
SKU: HVN-CA-BF360-04
EAN : 4251442513658
- High-airflow ATX mid-tower with GPU-focused air guide ramp and dual 180mm fans.
- Ultra-quiet operation with premium FDB bearings and vibration isolation.
- Minimalistic stone-textured front panel with SimpliCable routing system for a cleaner build.
GPU-Focused Air Guide Ramp
Channels airflow directly to graphics card intake.
Semi-Open Frame Access
Easier upgrades and improved cooling efficiency.

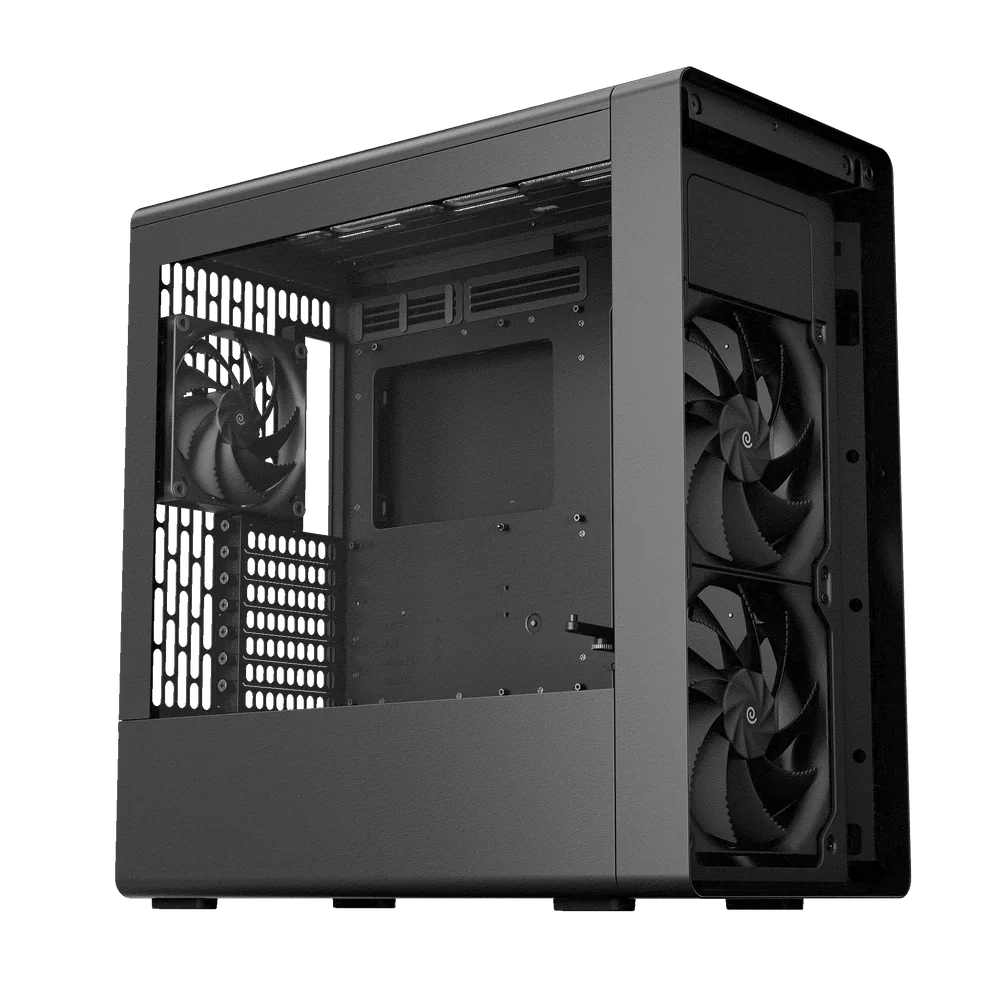

Dual 180mm H18 Fans
Maximum airflow capacity for high-end GPUs.
Triple-Groove FDB Bearings
Long-lasting, whisper-quiet fan operation.

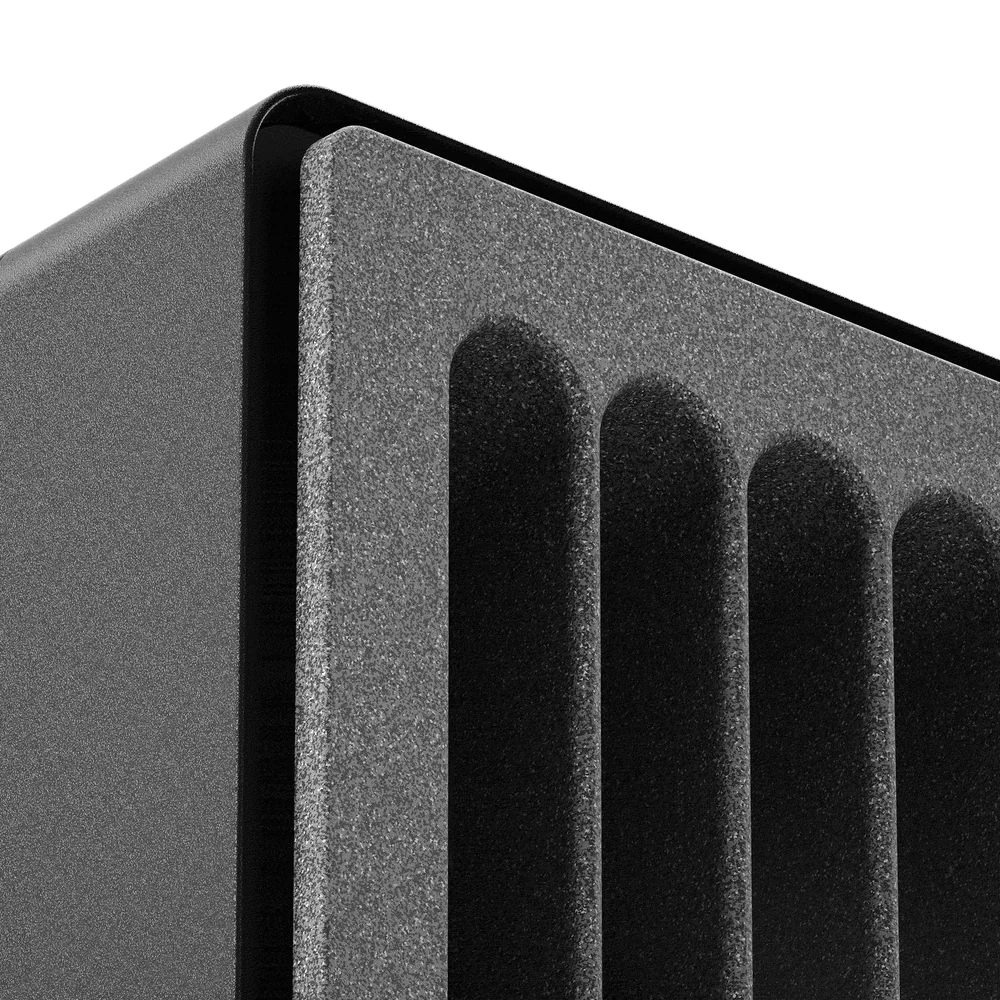

Stone-Textured Front Panel
Minimalistic stone-textured finish for premium aesthetic.
Precision Aerodynamic Design
Optimized airflow delivers efficient GPU cooling.

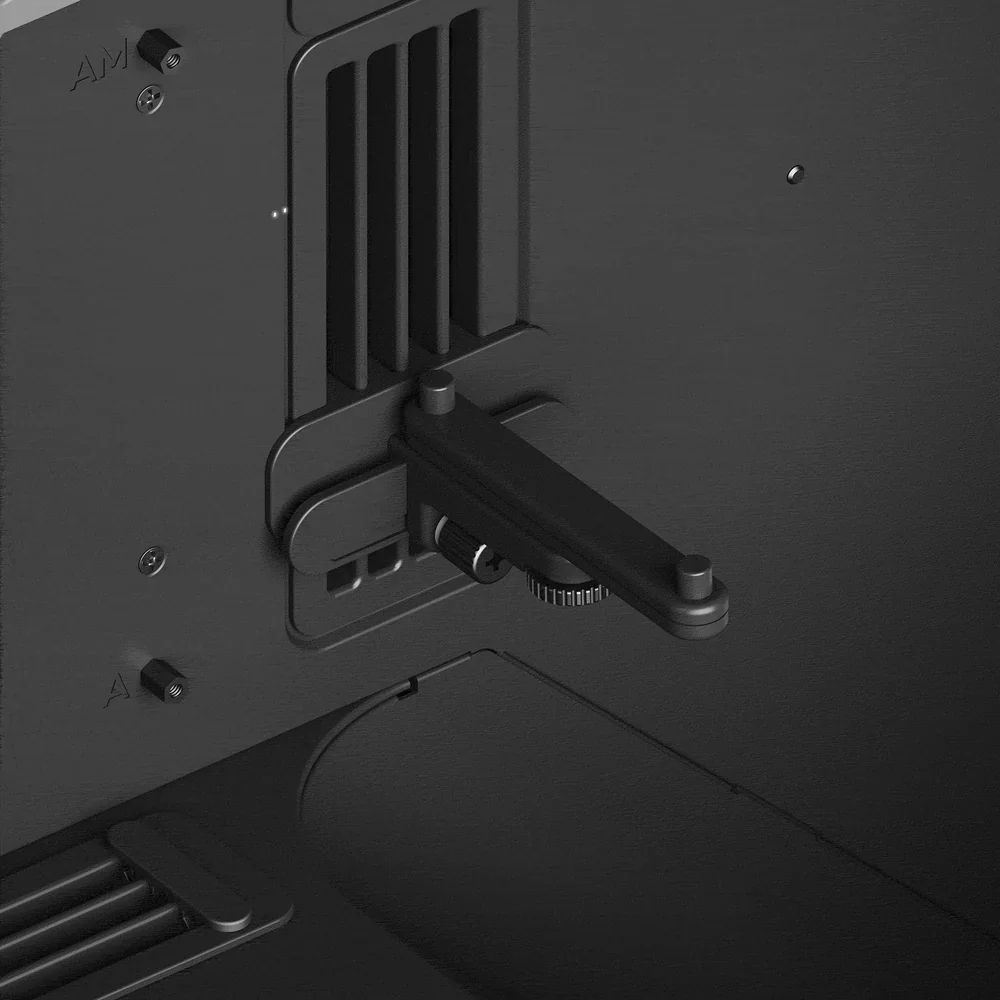

Highly Adjustable GPU Support
Neatly hidden bracket stabilizes heavy GPUs.

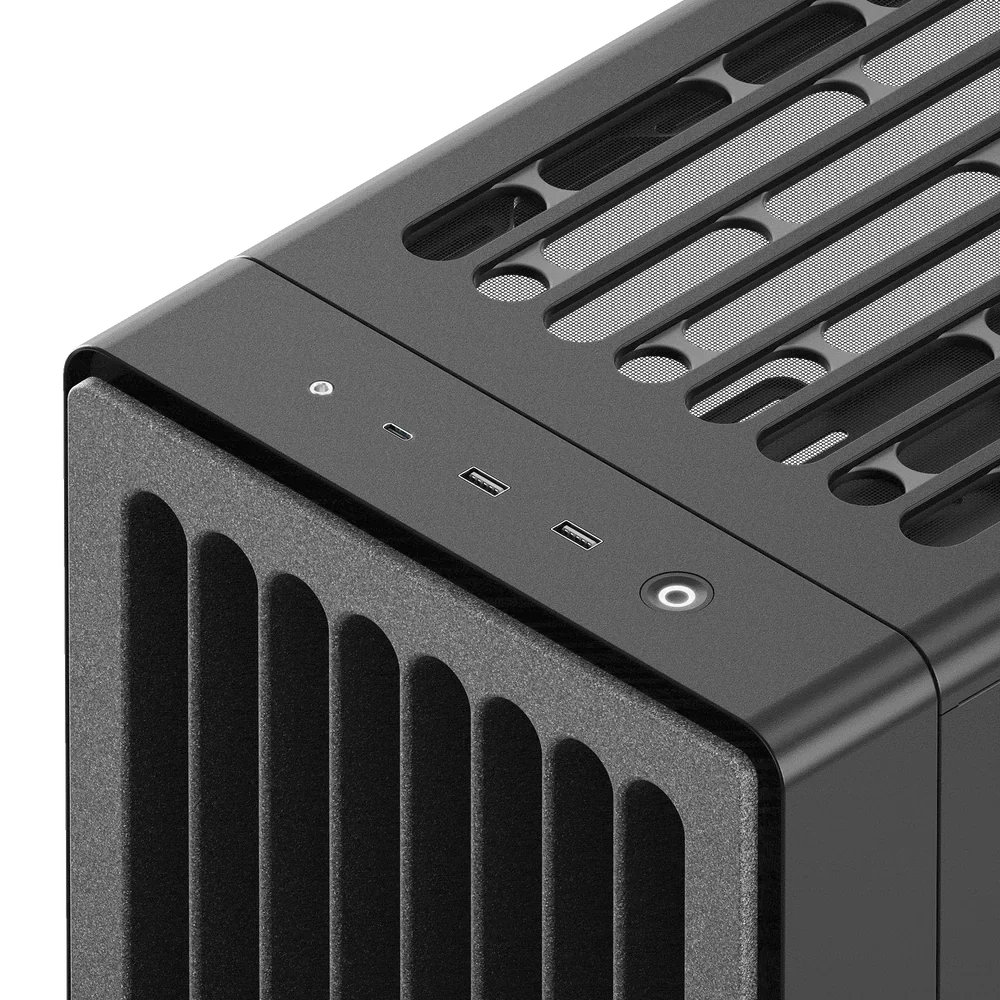

Front I/O
USB 3.2 Gen 2 Type-C x1
USB 3.2 Gen 1 Type-A x2
Audio Jack x1
Power & Reset Button x1
Motherboard Support
E-ATX* / ATX / Micro-ATX / ITX
*To install an E-ATX motherboard, the built-in GPU support bracket must be removed.
Expansion Slots
7
Fan Support
Maximum Amount: 6
Top: 2 x 180 mm / 2 x 140 mm / 3 x 120 mm
Front: 2 x 180 mm
Left: N/A
Right: N/A
Bottom: N/A
Rear: 1 x 140 / 1 x 120 mm
Fan PWM Repeater
Fan Ports: 1 x PWM repeaters, 6 ports total
Location: 1 x Cable Management Tray
Fan Connectors: 6 ports per repeater x 4-pin PWM
(Connect your primary fan to the white port to control PWM signal.
All other ports mirror the white port's signal.)
Fan Rated Voltage: 12V
Fan Safety Current: Up to 2.6A across 6 ports
Power Connector: 1 x SATA Power
Power Safety Current: 1 x SATA connector power input, 12V → 2.6A (max)
CPU Tower Cooler Clearance
Height: Up to 195 mm.
Liquid Cooling Support
Top: 240 / 280 / 360 mm
Front: N/A
Left: N/A
Right: N/A
Bottom: N/A
AIO Thickness Support: Up to 60mm
Graphics Card Clearance
Length: Up to 410 mm
Width: Up to 195 mm.
GPU Support
1 - 4.5 Slots
RAM Clearance
If the radiator & fans thickness is greater than 80 mm: 280 mm - 40 mm / 360 mm - 60 mm
Power Supply Support
ATX
Length: Up to 200mm (Clearance - 260mm)

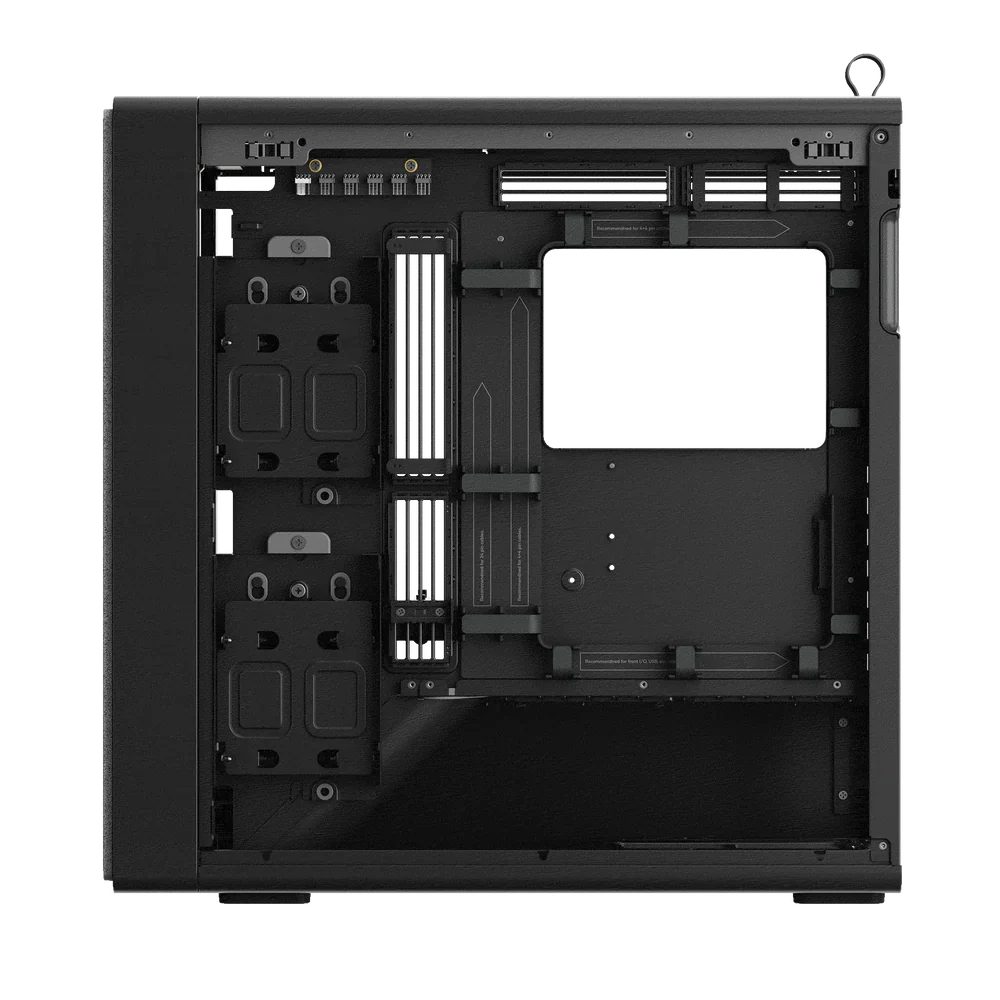

Storage
Right Mount: 2 Storage Bays: 2 x 3.5'' / 4 x 2.5''
Cable Management Tray: 1 Storage Bay: 1 x 3.5'' / 2 x 2.5''
Storage Bays Included: 2 x (2 x 3.5" / 4 x 2.5")
Dust Filter
Front: 1 (Built-in)
Top: 1 (Built-in)
Rear Bottom: 1 (Removable)
Pre-installed Fans
2x H18 Fan (Front) - Case Version
1x H14 Fan (Rear) - Case Version
Form Factor
Mid Tower
Material
SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
PC Case Dimensions (L x W x H)
515 x 254 x 522.6 mm
Net Weight
14.79 kg
Warranty
1 year
