HDCVT HDMI1.4 70m Extender with IR

The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.

FEATURES:

• HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant


• Support Video Resolution up to 4K2K@30Hz YUV 4:4:4


• CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30


• CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30


• Support Copying EDID from Receiver Display or Loop Out Display


• Allow for Cascading via additional HDMI loop out port


• Support one-way POC functionality (from transmitter to receiver)


• One-way IR signal transmission

SPECIFICATIONS:

• HDMI Compliance: HDMI 1.4


• HDCP Compliance: HDCP 1.4


• Video Bandwidth: 10.2Gbps


• Video Resolution: Up to 4K@30Hz


• Audio Support Up to 7.1CH HD audio


• Input TMDS Signal: 3.3 volts


• Input DDC Signal: 5.0 volts/P-P


• ESD Protection



  • Human Body model:



    • +/- 8 kV (air-gap discharge)


    • +/- 4 kV (contact discharge)

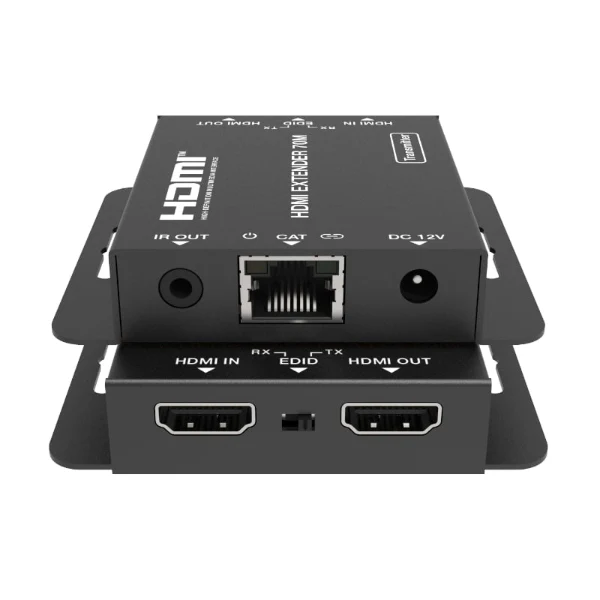

• Transmitter:



  • Input:



    • 1 x HDMI Type A [19-pin female]






  • Output:



    • 1 x HDMI Type A [19-pin female]


    • 1 x IR OUT [3.5mm Stereo Mini-jack]


    • 1 x CAT OUT [RJ45, 8-pin female]

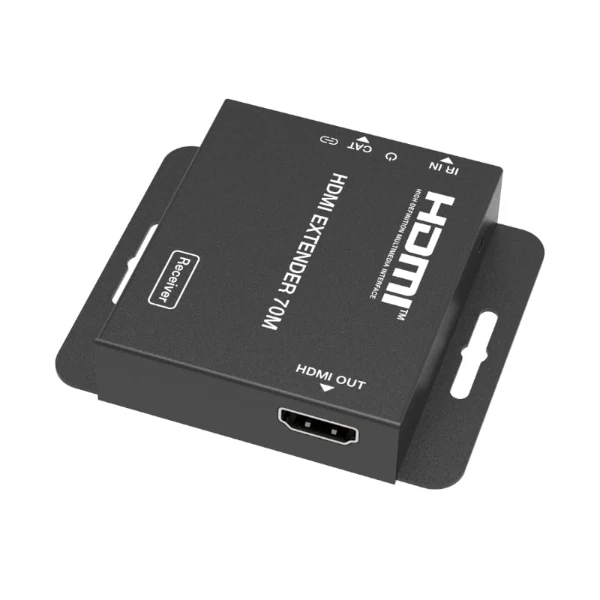

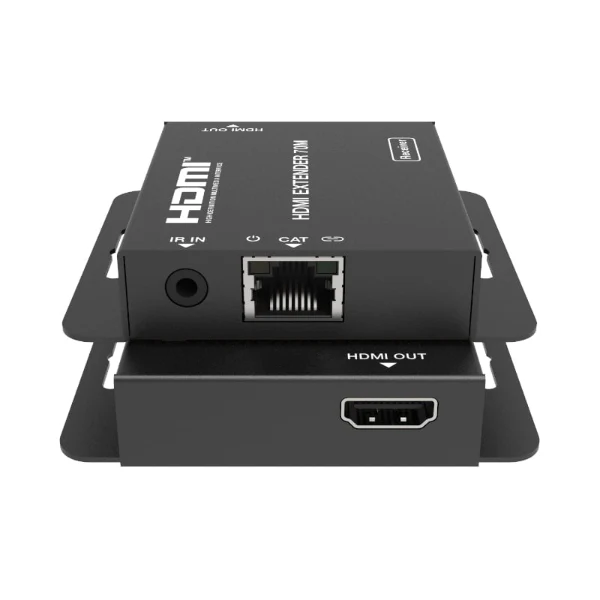

• Receiver:



  • Inputs:



    • 1x IR IN [3.5mm Stereo Mini-jack]


    • 1x CAT IN [RJ45, 8-pin female]






  • Output:



    • 1x HDMI Type A [19-pin female]










• Housing: Metal Enclosure


• Colour: Black


• Power Supply 12V/1A DC


• Power Consumption



  • Transmitter: 1.86W


  • Receiver: 0.87W






• Product Dimensions: 7.9 x 6.9 x 1.7 cm


• Weight:



  • Transmitter: 132g


  • Receiver: 130g





WHAT'S IN THE BOX:

• HDCVT HDMI 70M Extender Receiver x1


• HDCVT HDMI 70M Extender Transmitter x1


• IR Blaster Cable x1


• IR Receiver Cable x1


• 12V/1A DC Power Adapter x1


• User Manual x1
