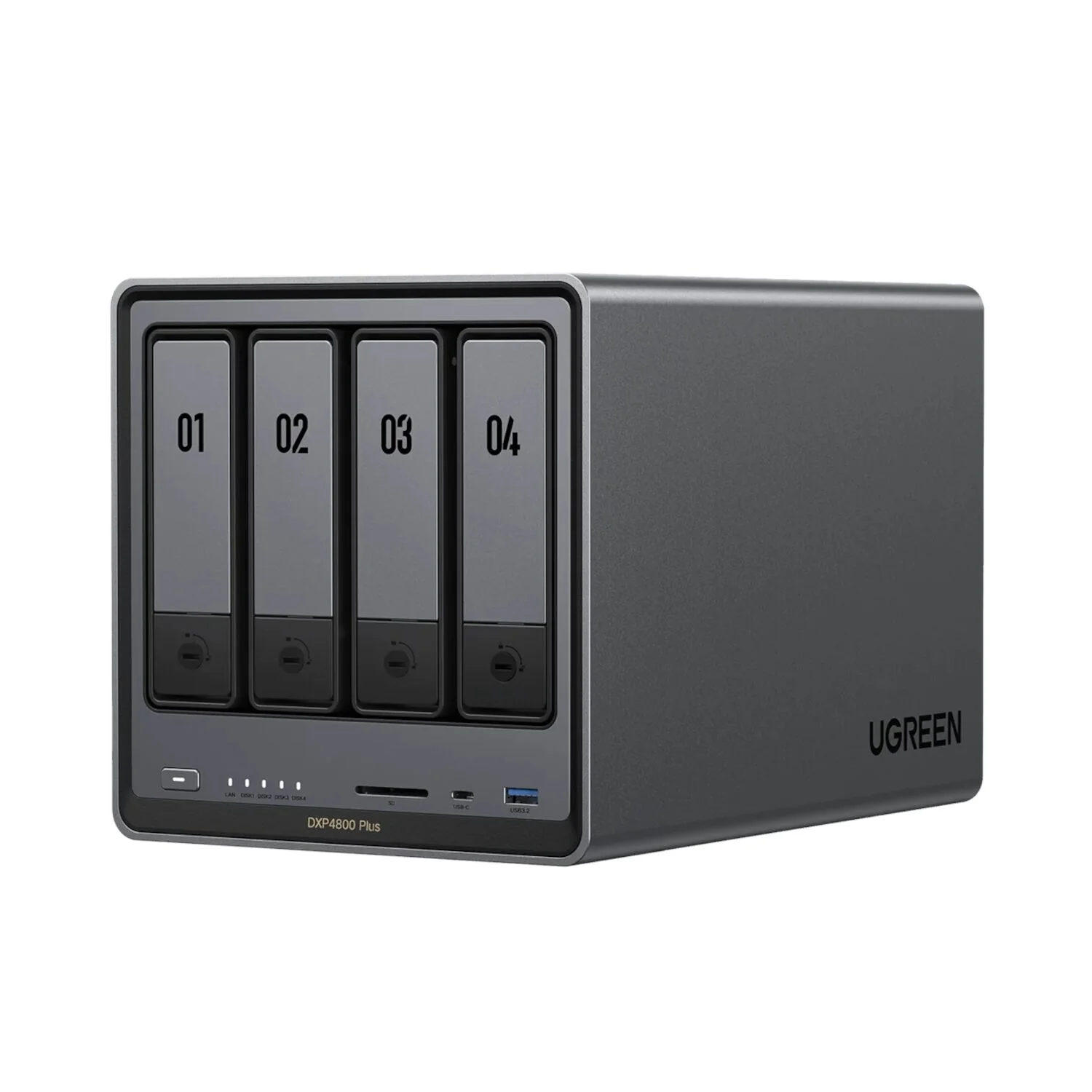

UGREEN NASync DXP4800 Plus 4-Bay NAS

Designed to empower seamless collaboration, high-speed access, and enterprise-level data security, the UGREEN NASync DXP4800 Plus 4-Bay NAS is a purpose-built solution for professionals and teams managing large, mission-critical files across networked environments.

As a dedicated network-attached storage (NAS) system, this device enables users across the same network, whether in a creative agency, architecture firm, remote working setup, or IT department, to access, store, and collaborate on data continuously and securely. The centralised storage model eliminates file version conflicts and bottlenecks, ensuring that teams operate from a single source of truth.

Built on a powerful 12th Gen Intel® Pentium® Gold 8505 processor with 5 cores and 6 threads, the UGREEN NASync DXP4800 Plus 4-Bay NAS delivers responsive multi-user performance. The 8GB DDR5 RAM is expandable to 64GB, allowing smooth operation of multiple applications and services, including private cloud hosting, AI-driven media sorting, and virtualisation environments.

With four SATA bays supporting up to 24TB each, plus two M.2 NVMe slots for high-speed caching, this NAS provides up to 112TB of scalable storage. Advanced RAID configurations (JBOD/Basic/0/1/5/6/10) and a robust thermal system protect your data while maintaining system stability.

Dual high-speed LAN ports (10GbE + 2.5GbE) enable ultra-fast data transfers, while front and rear USB ports and an SD card reader simplify external backups and file imports. UGOS Pro, UGREEN’s user-friendly OS, supports cross-platform access and intuitive data management, ensuring your workflow remains uninterrupted, no matter the device or operating system.

For businesses and creators needing always-available, high-capacity storage, the UGREEN NASync DXP4800 Plus 4-Bay NAS is the ideal foundation for a modern, collaborative data ecosystem.

FEATURES:

• Powered by Intel® Pentium® Gold 8505 with 5 cores and 6 threads for efficient multitasking


• Supports up to 112TB storage via 4 SATA bays and dual M.2 NVMe slots


• Dual LAN ports (10GbE + 2.5GbE) for ultra-fast data access and low-latency performance


• Includes 8GB DDR5 RAM, expandable up to 64GB for demanding workloads


• Intelligent RAID support (0/1/5/6/10) enables robust data protection and flexible storage strategies


• UGOS Pro operating system offers intuitive storage management and private cloud capabilities


• Cross-platform access via Windows, macOS, Android, iOS, and web browsers


• AI-powered photo recognition streamlines media organisation for content creators

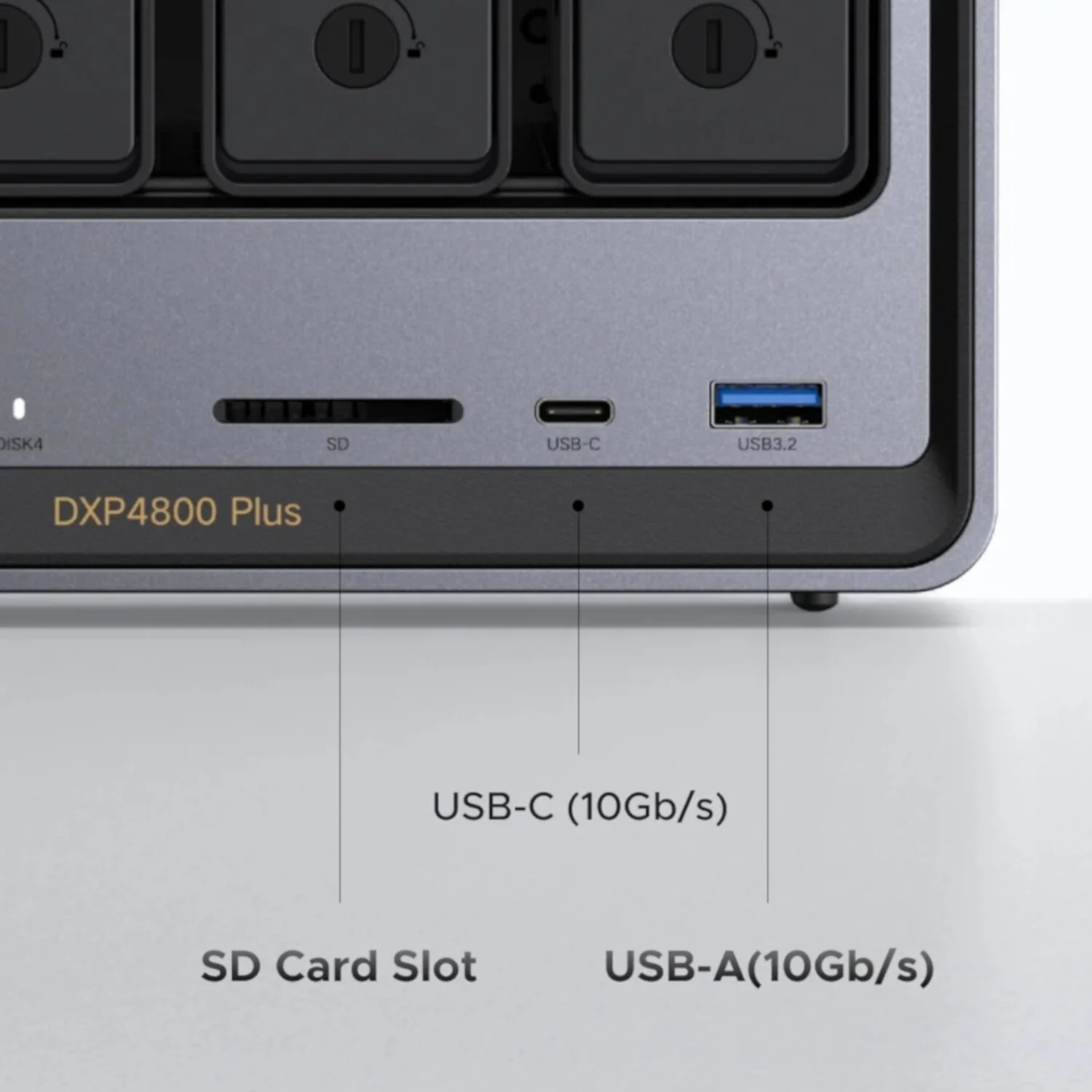

• Type-C (10Gbps), USB-A, and SD 3.0 card reader for direct, high-speed file transfers


• HDMI output with 4K support for real-time media preview and local display integration


• Efficient thermal design with 140mm fan ensures stable operation under heavy loads


• Compact, modern chassis designed for desktop deployment in creative or office environments

SPECIFICATIONS:

• Drive Bays: 4-Bay (SATA)


• Operating System: UGOS Pro


• CPU Model: 8505


• CPU Brand & Architecture: Intel X86 12th Generation Intel® Pentium® Gold 5 Cores 6 Threads


• Memory (RAM): 8GB DDR5


• ODECC: Supported


• Expandable RAM (max): 64GB


• Flash Memory (System Disk): SSD 128GB


• SATA Drive Bays: 4


• M.2 SSD Drive Slots: 2


• RAID: JBOD/Basic/0/1/5/6/10


• Maximum Storage: 112TB (4x 24TB + 2x 8TB)


• LAN Ports (RJ45): 1x 2.5GbE, 1x 10GbE


• USB Ports (Front Panel):  1x Type-C, 1x USB-A (both 10Gb/s)


• USB Ports (Rear Panel): 1x USB-A (5Gb/s)


• USB 2.0 (Rear Panel): 2x USB-A (480Mb/s)


• SD Card Reader: SD 3.0


• HDMI Resolution: 4K


• Product Dimensions: 25.76 × 17.81 × 17.81 cm


•

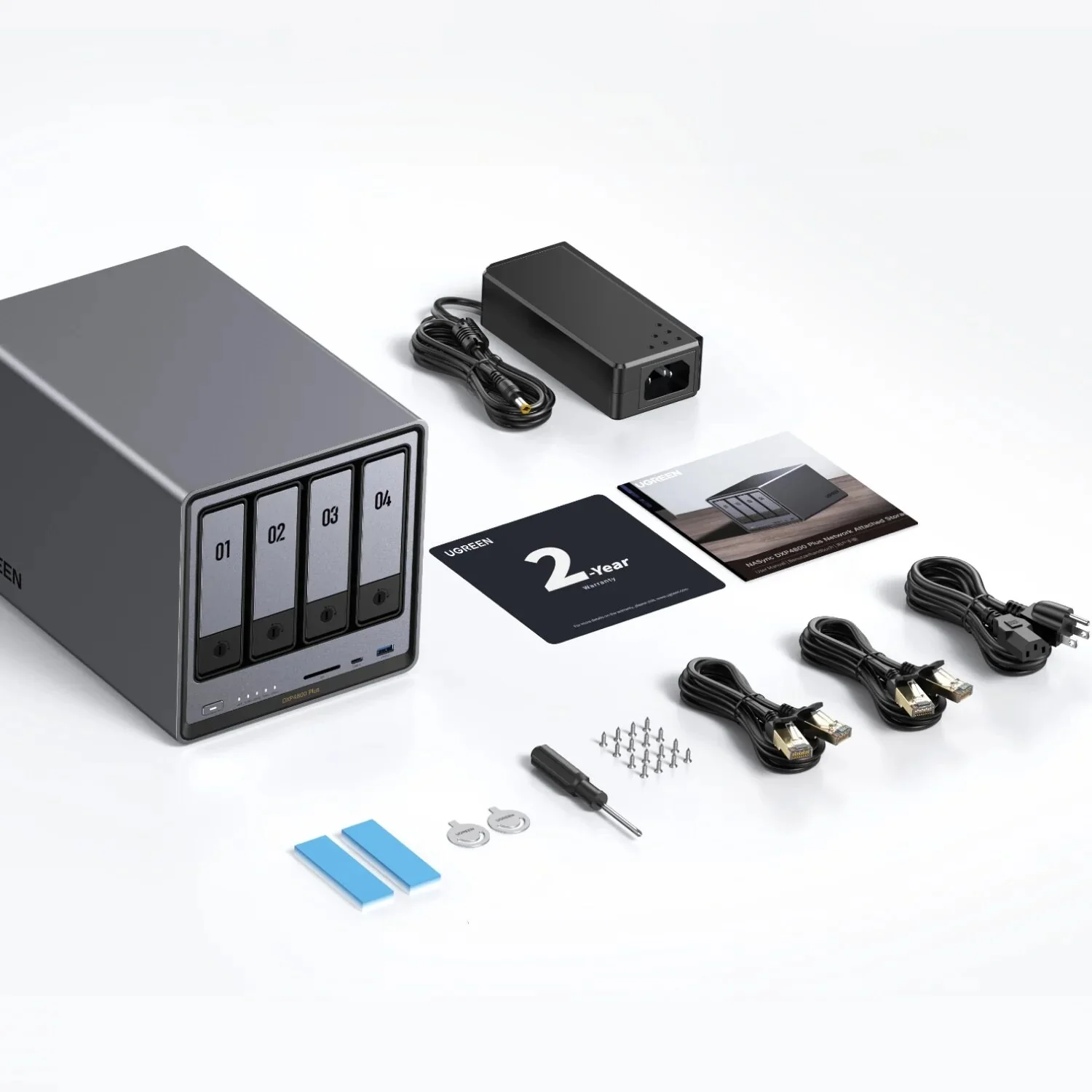

WHAT'S IN THE BOX:

• UGREEN NASync DXP4800 Plus 4-Bay NAS x1


• User Manual x1


• SSD Silicone Pads x2


• Hard Drive Tray Keys x2


• Screws & Screwdriver x1


• Ethernet Cable (CAT 7) x2


• Power Adapter (DC 12V/5A) x1
