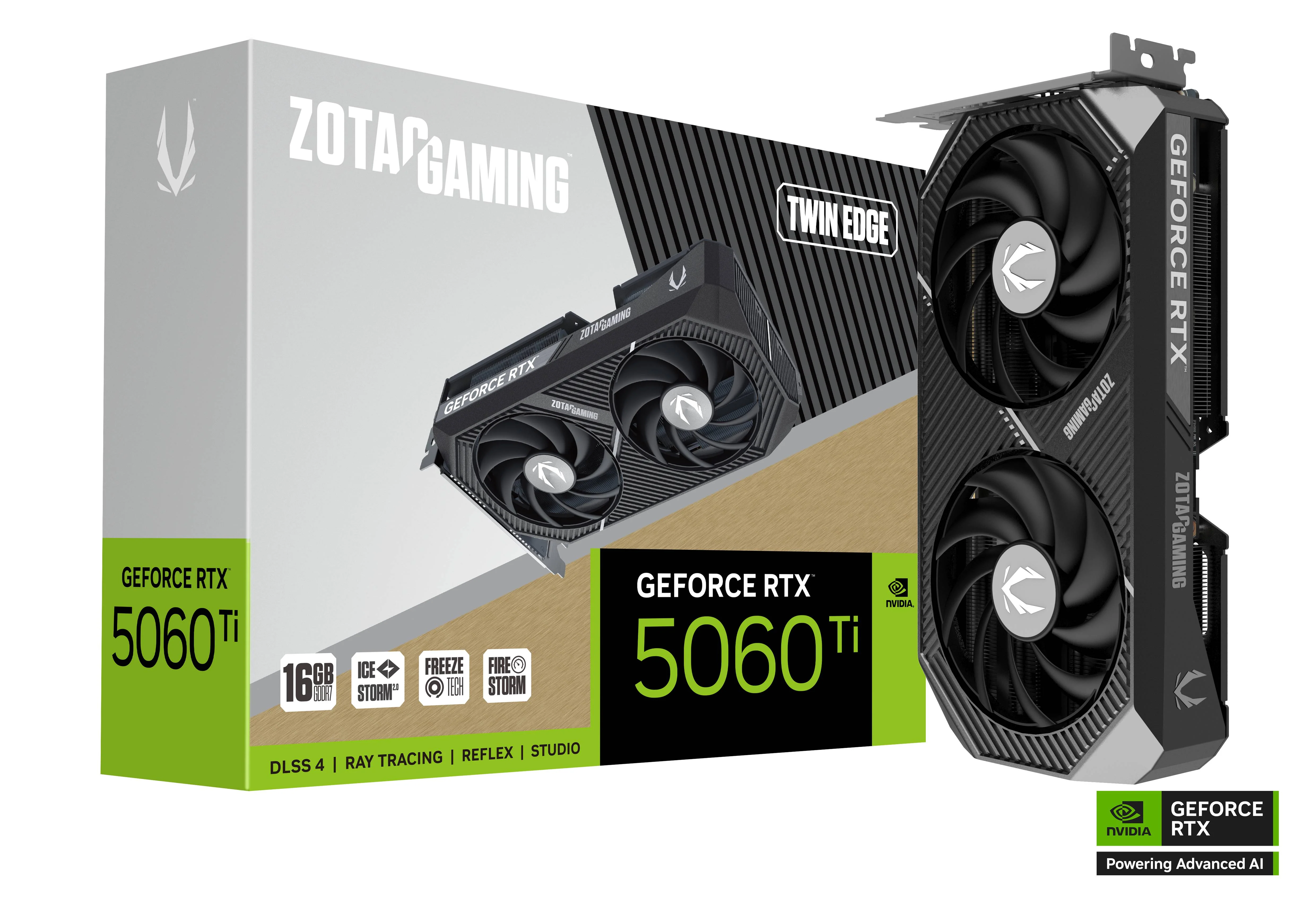

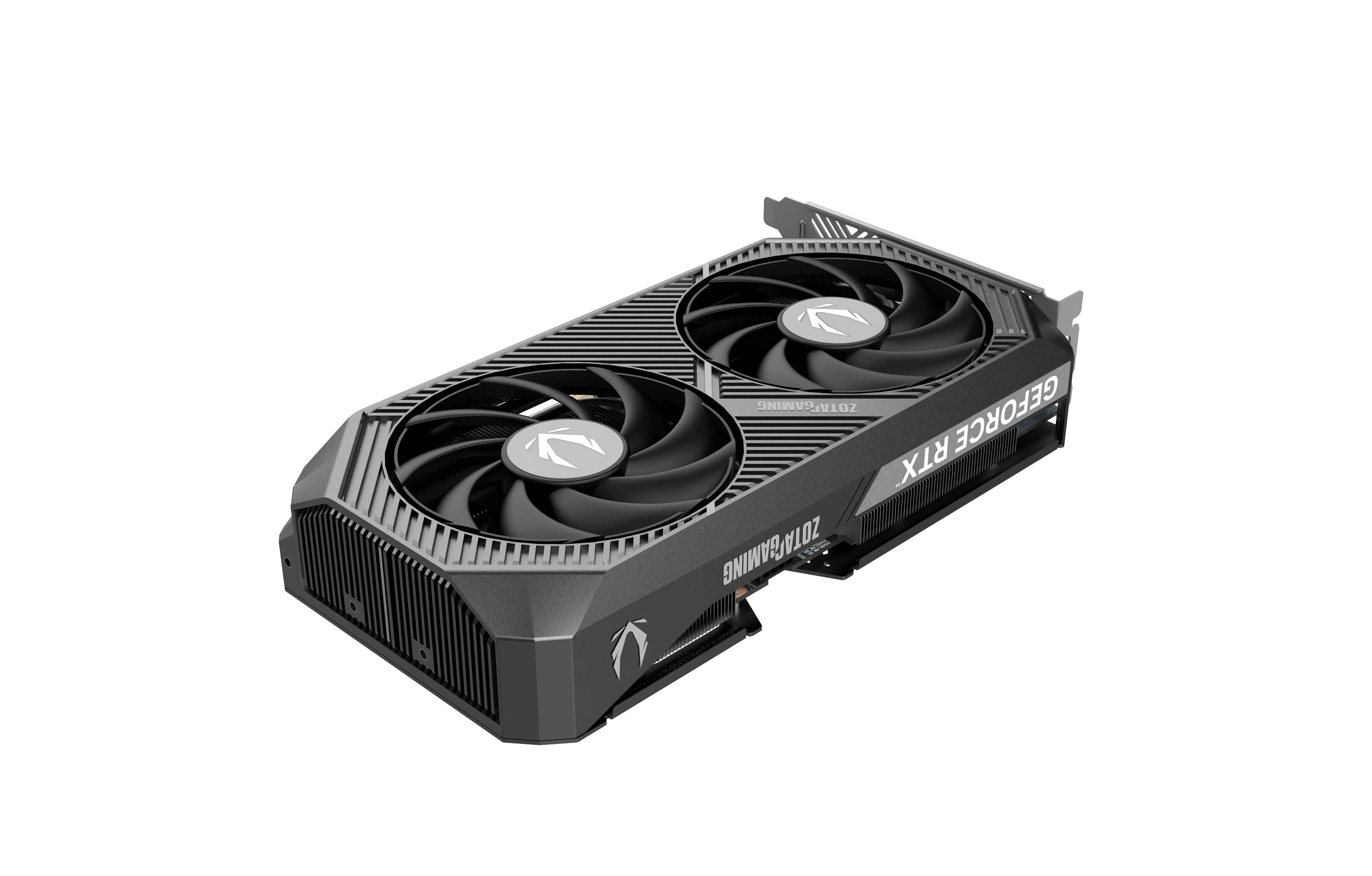

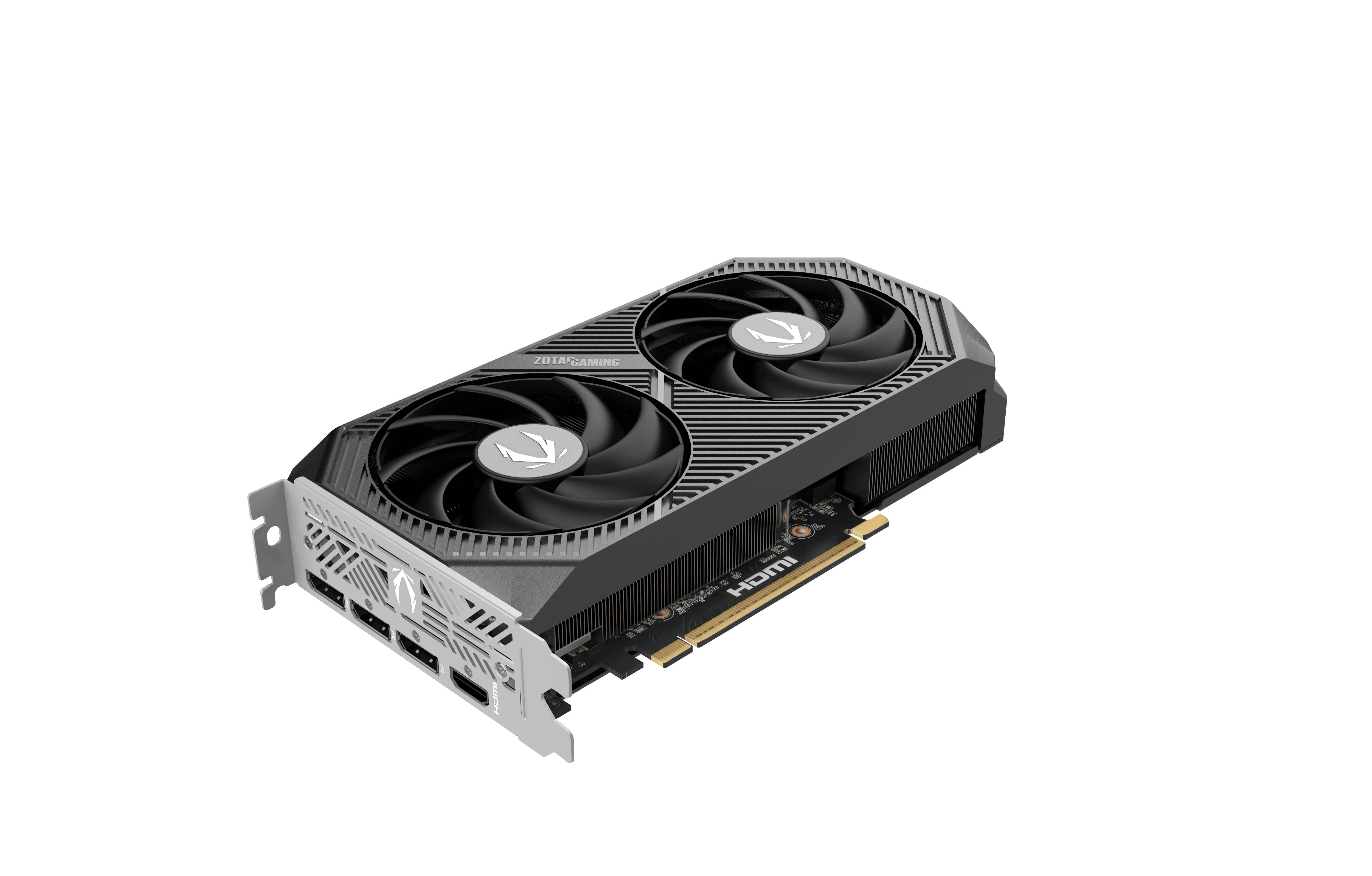

ZOTAC GAMING GEFORCE RTX 5060 Ti TWIN EDGE 16GB GDDR7 Graphics Card
The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.
Nvidia:
- NVIDIA Blackwell Architecture
- 5th Generation Tensor cores
- 4th Generation RT cores
- NVIDIA DLSS 4
- Game Ready and NVIDIA Studio Drivers
- NVIDIA® GeForce Experience™
- NVIDIA Broadcast, NVIDIA G-SYNC ®
Feature Highlights:
-
Powered by the NVIDIA Blackwell architecture and DLSS 4
- 8-Pin PCIe power connector
- SFF-Ready compact Graphics Card

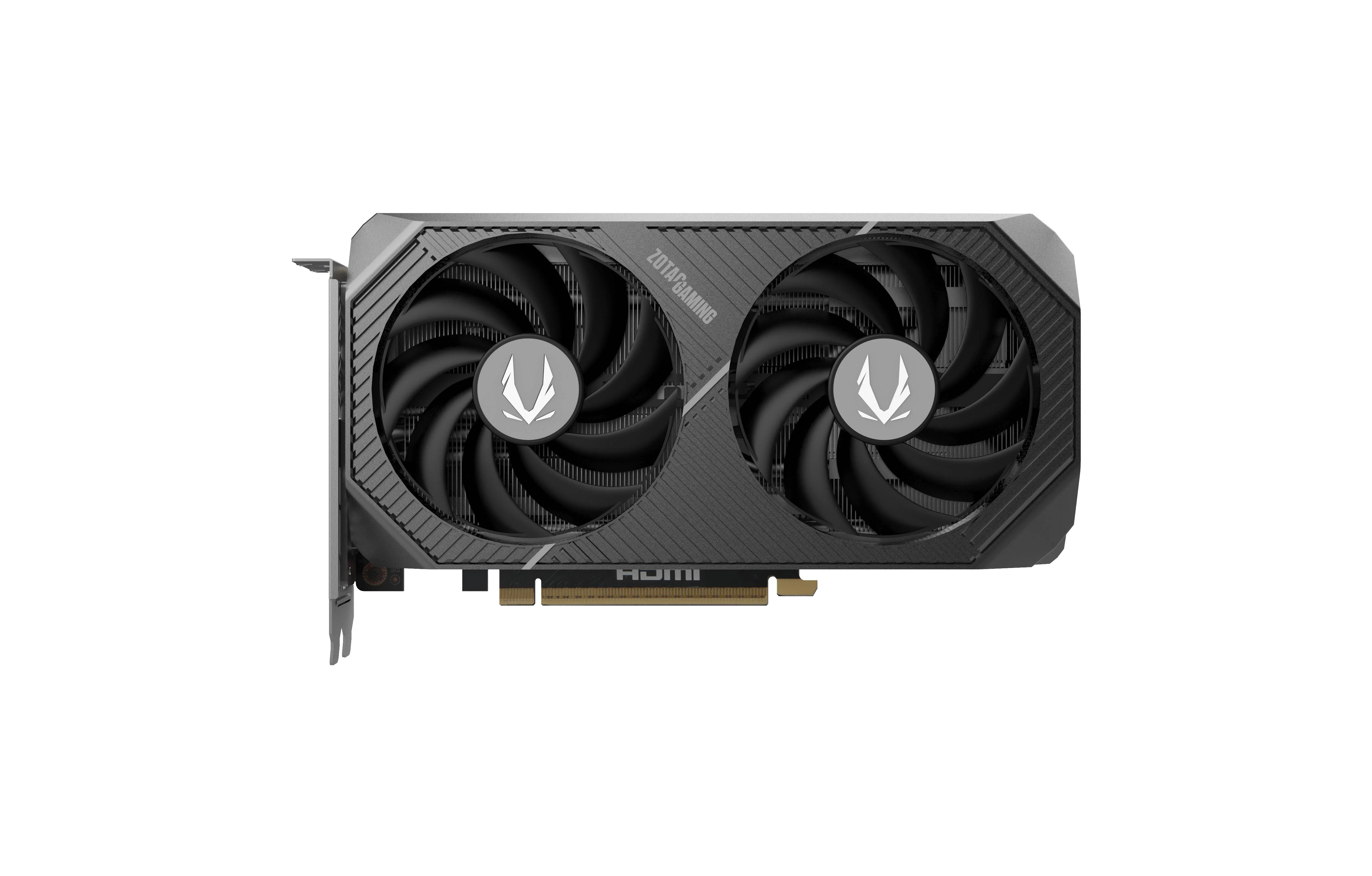

- Compact dual-fan form factor
- IceStorm 2.0 Cooling

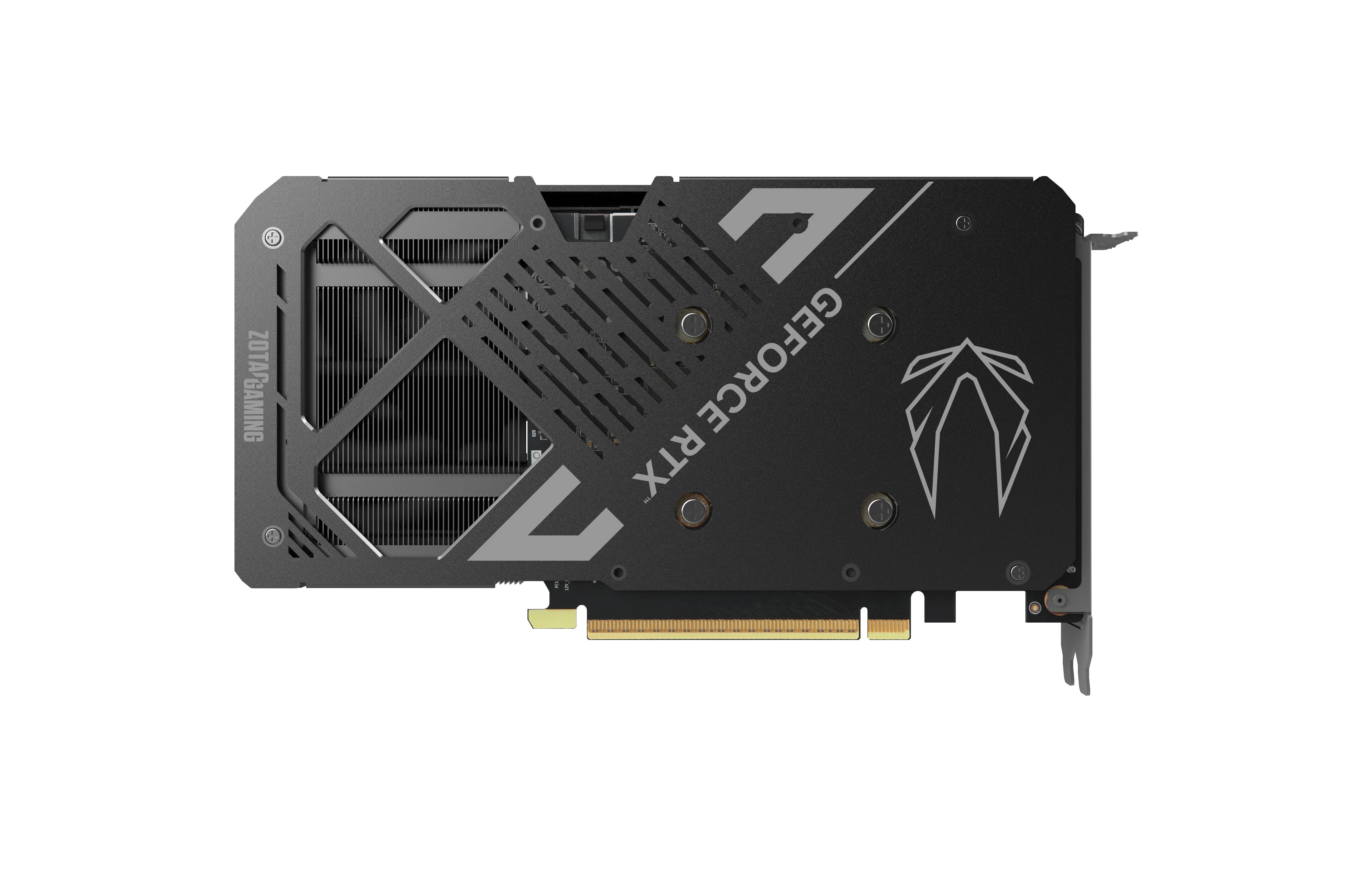

- Metal Backplate
- FREEZE Fan Stop
- BladeLink Fans
- All-new FireStorm Utility (DOWNLOAD)
-
3 years Local Standard Warranty + 2 years additional Zotac Direct Warranty after registration. Learn more
|
GPU
|
NVIDIA GeForce RTX 5060 Ti GPU
|
|
CUDA cores
|
4608
|
|
Video Memory
|
16GB GDDR7
|
|
Memory Bus
|
128-bit
|
|
Engine Clock
|
2572 MHz
|
|
Memory Clock
|
28 Gbps
|
|
AI TOPS
|
759
|
|
PCI Express
|
PCI Express 5.0 x8
|
|

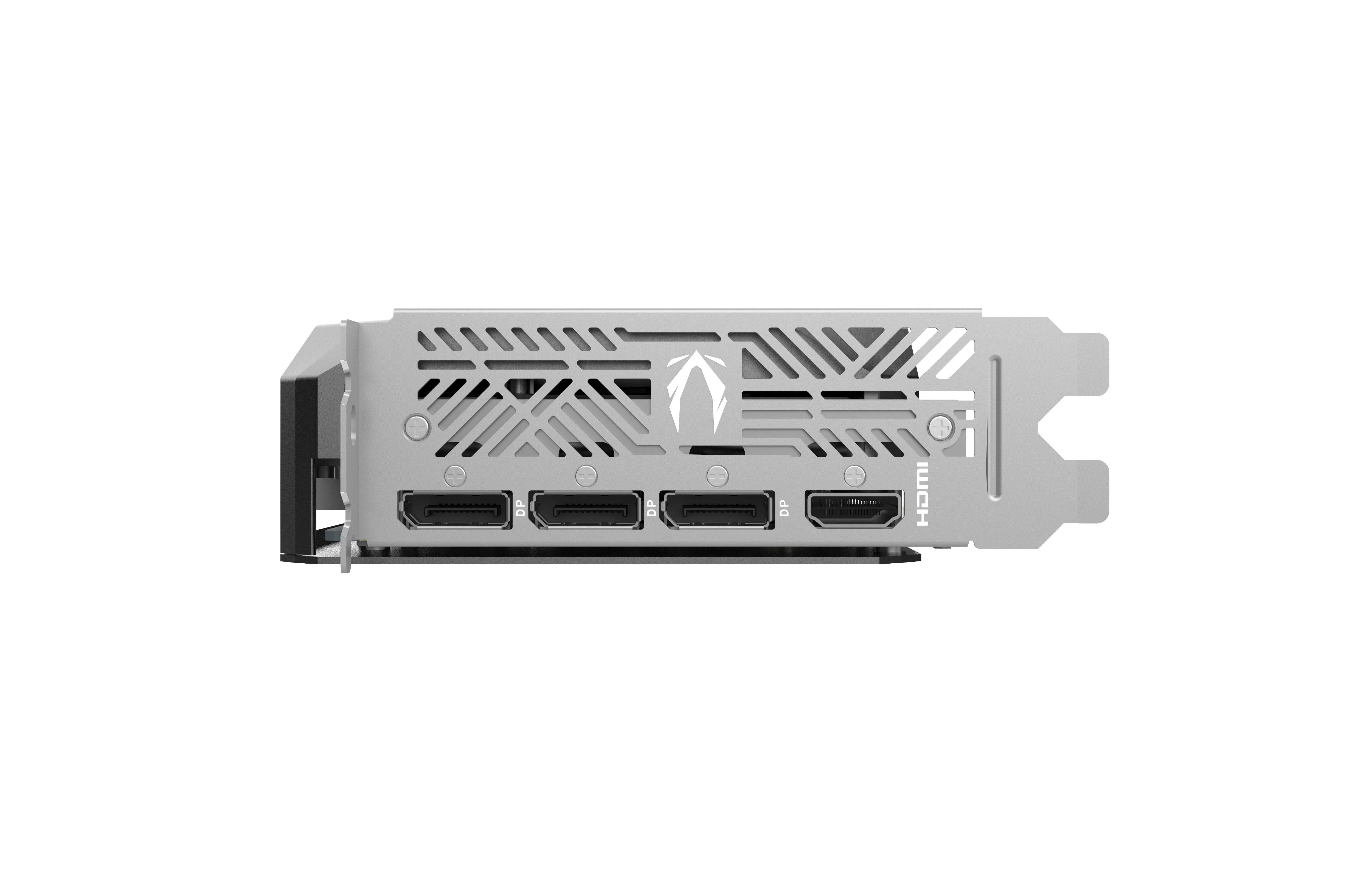

Display Outputs
|
3 x DisplayPort 2.1b with UHBR20
|
| (up to 4K 480Hz or 8K 165Hz with DSC) | |
| 1 x HDMI® Connector | |
| (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) | |
|
HDCP Support
|
2.3
|
|
Multi Display Capability
|
Quad Display
|
|
Recommended Power Supply
|
600W
|
|
Power Consumption
|
180W
|
|
Power Input
|
1 x 8-pin power input
|
|
DirectX
|
Microsoft DirectX® 12 Ultimate
|
|
OpenGL
|
4.6
|
|
Cooling
|
Air Cooled
|
|
Slot Size
|
2
|
|
SLI
|
No
|
|
Supported OS
|
Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)
|
|
Card Length
|
220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"
|
|
Accessories
|
User Manual
|
Original: $616.14
-70%$616.14
$184.84Product Information
